The column base is loaded by tension and shear.ย
The difference in anchor utilization is 3% due to the occurrence of prying forces in CBFEM.
SteelVerificationsCSA (Canada)Connection
Anchor bolts in tension and shear
This article is also available in

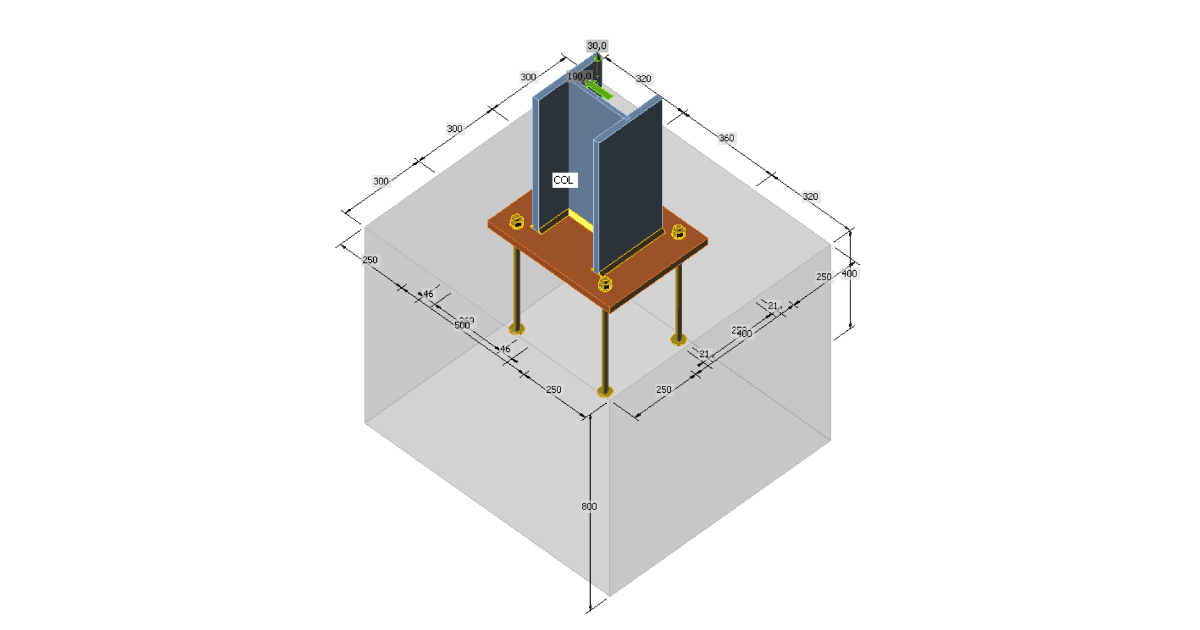

In the attached verification example, an anchoring is designed according to CSA S14-16 and CSA A23.3-14 and the resistances are compared to CBFEM results.
