In the design and check of footings, an AISC project can consider a hook type of anchor for the foundation concrete block.

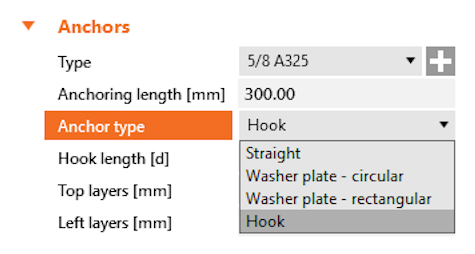

The L-shaped anchors can be defined either in the base plate or in the fastener grid or contact operations.

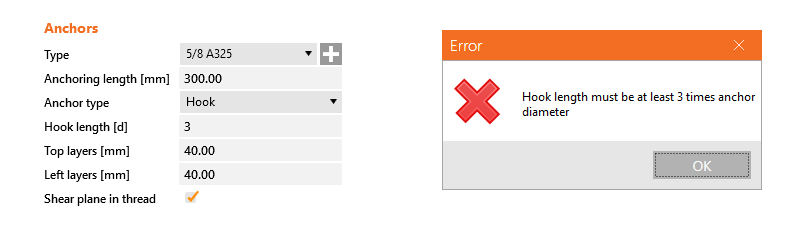

The hook length must be at least three times the anchor diameter, as per ACI 318-19 - 17.6.3.2.2. A warning appears when this condition is not met.

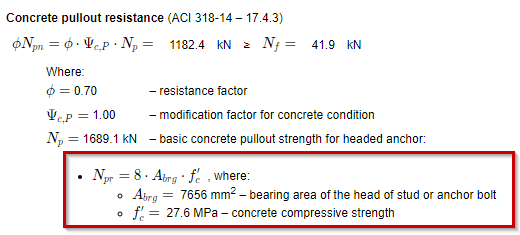

You can find the concrete pullout resistance check as per ACI in the report. For more information about the checking of anchors and a concrete block according to AISC, go to Check of steel connection components (AISC).
Released in IDEA StatiCa version 24.0.
